While Kubernetes is far more than just a server, thinking about it as a REST API server is incredibly helpful for understanding how to interact with cluster resources.
In this post I’ll explore how we can interact with Kubernetes as a server and how to discover its API.
Proxy
To make it easier for you to see how Kubernetes is a server, run:
> kubectl proxy
Now we can call the API to navigate through its endpoints. Calling the root you can see all available paths:
> curl localhost:8001
{
"paths": [
"/.well-known/openid-configuration",
"/api",
"/api/v1",
"/apis",
"/apis/",
"/apis/acme.cert-manager.io",
"/apis/acme.cert-manager.io/v1",
"/apis/admissionregistration.k8s.io",
"/apis/admissionregistration.k8s.io/v1",
"/apis/apiextensions.k8s.io",
"/apis/apiextensions.k8s.io/v1",
"/apis/apiregistration.k8s.io",
"/apis/apiregistration.k8s.io/v1",
"/apis/apps",
"/apis/apps/v1",
"/apis/authentication.k8s.io",
"/apis/authentication.k8s.io/v1",
"/apis/authorization.k8s.io",
// ...
}
The APIs list all their versions calling /apis:
> curl localhost:8001/apis
{
"kind": "APIGroupList",
"apiVersion": "v1",
"groups": [
{
"name": "apiregistration.k8s.io",
"versions": [
{
"groupVersion": "apiregistration.k8s.io/v1",
"version": "v1"
}
],
"preferredVersion": {
"groupVersion": "apiregistration.k8s.io/v1",
"version": "v1"
}
},
{
"name": "apps",
"versions": [
{
"groupVersion": "apps/v1",
"version": "v1"
}
],
"preferredVersion": {
"groupVersion": "apps/v1",
"version": "v1"
}
},
{
"name": "events.k8s.io",
"versions": [
{
"groupVersion": "events.k8s.io/v1",
"version": "v1"
}
],
"preferredVersion": {
"groupVersion": "events.k8s.io/v1",
"version": "v1"
}
},
// ... collapsed for readability
]
}
Picking any of the group versions there will show you more information about the particular resource:
> curl localhost:8001/events.k8s.io/v1
{
"kind": "APIResourceList",
"apiVersion": "v1",
"groupVersion": "events.k8s.io/v1",
"resources": [
{
"name": "events",
"singularName": "event",
"namespaced": true,
"kind": "Event",
"verbs": [
"create",
"delete",
"deletecollection",
"get",
"list",
"patch",
"update",
"watch"
],
"shortNames": [
"ev"
],
"storageVersionHash": "r2yiGXH7wu8="
}
]
}
If you’ve configured users, roles and role_bindings you’ll find the payload familiar (and useful). For each of the resource listed, you get a path and the CRUD + other operations you can perform against that particular resource.
Let’s see what you get with statefulsets
> curl localhost:8001/apis/apps/v1/statefulsets
{
"kind": "StatefulSetList",
"apiVersion": "apps/v1",
"metadata": {
"resourceVersion": "1027297"
},
"items": [
{
"metadata": {
"name": "minitube-nats",
"namespace": "default",
"uid": "6815e412-36f6-488b-87e5-19a22ef4ca1d",
"resourceVersion": "1025766",
"generation": 1,
"creationTimestamp": "2026-02-23T15:42:03Z",
"labels": {
"app.kubernetes.io/component": "nats",
"app.kubernetes.io/instance": "minitube",
"app.kubernetes.io/managed-by": "Helm",
"app.kubernetes.io/name": "nats",
"app.kubernetes.io/version": "2.12.4",
"helm.sh/chart": "nats-2.12.4"
},
"annotations": {
"meta.helm.sh/release-name": "minitube",
"meta.helm.sh/release-namespace": "default"
},
"managedFields": [
{
"manager": "helm",
"operation": "Apply",
"apiVersion": "apps/v1",
"time": "2026-02-23T15:42:03Z",
"fieldsType": "FieldsV1",
"fieldsV1": {
"f:metadata": {
"f:annotations": {
"f:meta.helm.sh/release-name": {},
"f:meta.helm.sh/release-namespace": {}
},
"f:labels": {
"f:app.kubernetes.io/component": {},
"f:app.kubernetes.io/instance": {},
"f:app.kubernetes.io/managed-by": {},
"f:app.kubernetes.io/name": {},
"f:app.kubernetes.io/version": {},
"f:helm.sh/chart": {}
}
},
"f:spec": {
"f:podManagementPolicy": {},
"f:replicas": {},
"f:selector": {},
// ...
]
}
If your resource has a get verb you can call it also directly:
> curl localhost:8001/apis/apps/v1/namespaces/default/statefulsets/minitube-nats
There’s a lot of interesting information there about Kubernetes internals. The point of this post is not to deep dive, but simply to give you idea what hides below the surface.
When you handle your yaml configuration files, you’re really just managing a json payload, that is only a UI for the go structs used internally.
Resources
Proxying the API server and navigating through their endpoints is not the easiest way to get information about what resources you have available and how you can configure them. There’s an extension to kubectl which makes that much easier:
> kubectl api-resources
NAME SHORTNAMES APIVERSION NAMESPACED KIND
bindings v1 true Binding
componentstatuses cs v1 false ComponentStatus
configmaps cm v1 true ConfigMap
endpoints ep v1 true Endpoints
events ev v1 true Event
limitranges limits v1 true LimitRange
namespaces ns v1 false Namespace
nodes no v1 false Node
persistentvolumeclaims pvc v1 true PersistentVolumeClaim
persistentvolumes pv v1 false PersistentVolume
pods po v1 true Pod
podtemplates v1 true PodTemplate
replicationcontrollers rc v1 true ReplicationController
resourcequotas quota v1 true ResourceQuota
secrets v1 true Secret
As you see, Kubernetes has a resource representing it’s resources. Extensibility is builtin to it’s core. You can create or override existing resources with your own CRDs as long as you adhere to the API model.
I’ll go over how to so in a future post, for now let’s add the last piece of the puzzle on how you can get information about a particular API you need to use.
OpenAPI
The previous post in this series showed how all objects have the same structure (with few exceptions): kind, version, metadata and spec.
We saw how to get information about the kind and version. Now the missing piece is to look at spec.
You may have noticed on the first payload that there is a /openapi endpoint. Let’s see what is returned by calling it:
> curl localhost:8001/openapi/v3
{
"paths": {
".well-known/openid-configuration": {
"serverRelativeURL": "/openapi/v3/.well-known/openid-configuration?hash=758874B735BE352ADB2435128562FBA15E47F7D831555B7E037CDA469B398FC68EF1D2487E682C1FCDA53AD423C241FDEC0B633B991EE1E9A0A7D9DBEBDC4B2C"
},
"api": {
"serverRelativeURL": "/openapi/v3/api?hash=9824AD58C82843B6E7311C1AA95512C8FBFAB4D24F3F338F88891EC2B9F06DF7234B3BA2E85370E209438CFFD9E7F4C76CF470A02BA1DB530A3C564094B3DA41"
},
"api/v1": {
"serverRelativeURL": "/openapi/v3/api/v1?hash=79E2EAA6709FB44429DF0C2392F2A86D668A2100DB82CDEDDE9D23A776092AE2DDB903E9D03125803FEE7F658A05B5009BB3379FF59A7485B6B774B2C216C3CD"
},
"apis": {
"serverRelativeURL": "/openapi/v3/apis?hash=9546B06017367CC9DA46D55E996D14D12E67EB2DD9EF0027226FCCA371552E9E6C546A56290D853D6E46DC56853542BA2BB247833A008FDD232E3370CA7CCEA5"
},
// ...
}
Every single resource in Kubernetes has an OpenAPI specification which can use as reference on top of it. You can see all of them by calling the endpoints and you could even copy paste the specification to visualize it in any OpenAPI UI available online:
> curl localhost:8001/openapi/v3/apis/apps/v1
{
"openapi": "3.0.0",
"info": {
"title": "Kubernetes",
"version": "1.35"
},
"paths": {
"/apis/apps/v1/": {
"get": {
"tags": [
"apps_v1"
],
"description": "get available resources",
"operationId": "getAppsV1APIResources",
"responses": {
"200": {
"description": "OK",
"content": {
"application/json": {
"schema": {
"$ref": "#/components/schemas/io.k8s.apimachinery.pkg.apis.meta.v1.APIResourceList"
}
},
"application/vnd.kubernetes.protobuf": {
"schema": {
"$ref": "#/components/schemas/io.k8s.apimachinery.pkg.apis.meta.v1.APIResourceList"
}
},
"application/yaml": {
"schema": {
"$ref": "#/components/schemas/io.k8s.apimachinery.pkg.apis.meta.v1.APIResourceList"
}
}
}
},
"401": {
"description": "Unauthorized"
}
}
}
// ...
}

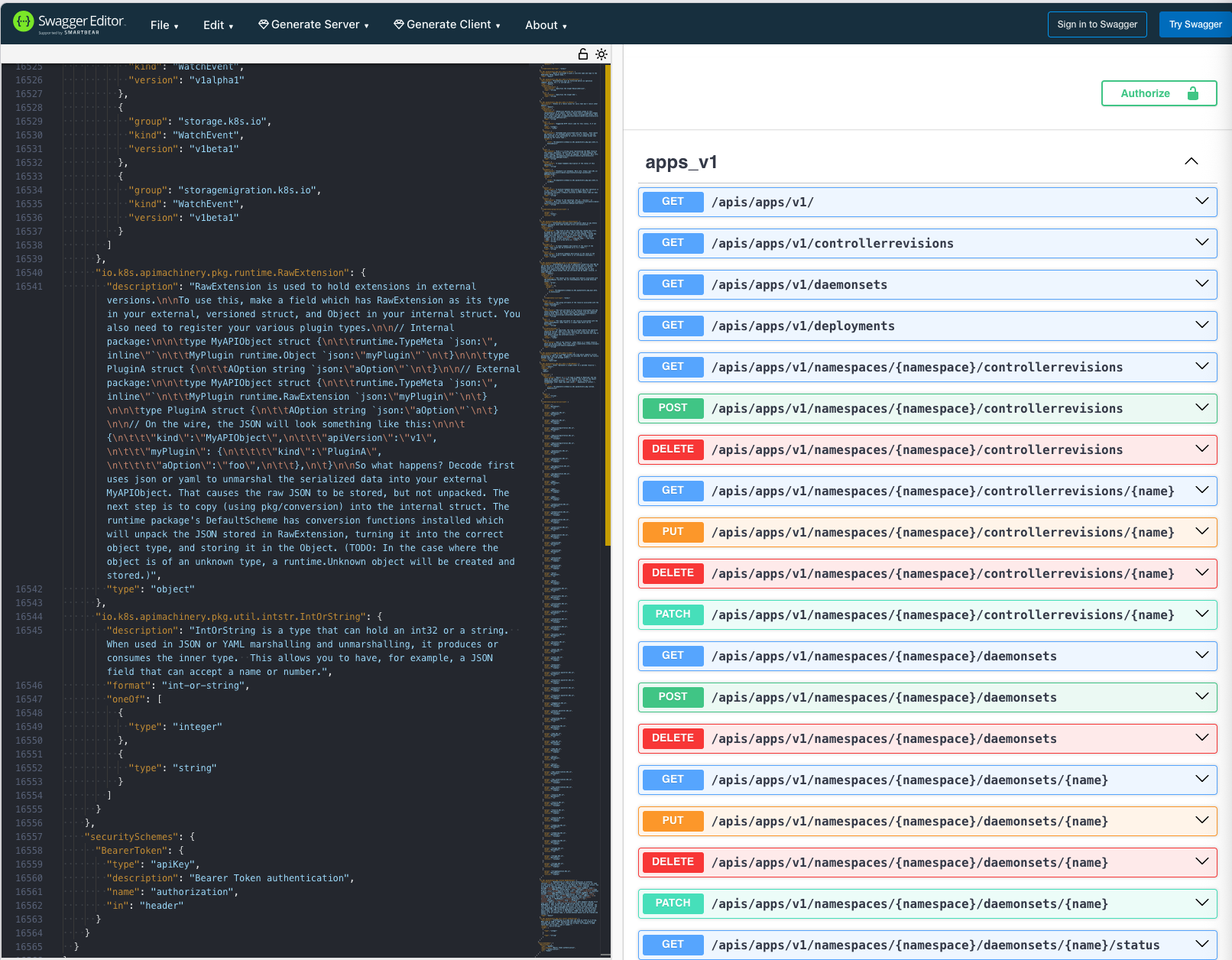

Here’s an example of what copy/pasting the payload get’s you on editor.swagger.io:
That’s it for now. I hope this has provided you with a new perspective on how you can use Kubernetes. On the next post I’ll go over the tools we have available to set up an API extension.
